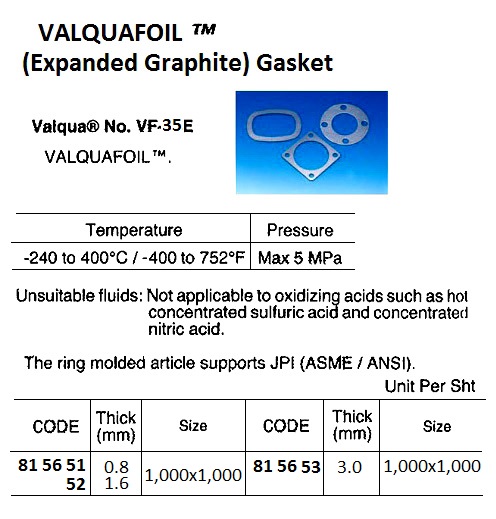

815653 GASKET VALQUAFOIL VF-35E, EXPAND GRAHITE 3.0X1000X1000MM

规格参数	参数值
IMPA编码	815653
产品单位	ST
产品规格	VALQUA?No. VF-35E. Leverages the characteristics of the pure graphite sealing material VALQUAFOIL?. Features: Excellent heat resistance, Very small changes in physical properties under high temperatures , Low stress relaxation, Chemical resistance. Temperature: -240 to 400oC / -400 to 752o,F, Pressure: Max 5 MPa. Suitable fluids: General fluids (water, steam, oil, etc.), corrosive liquids, liquefied gas, cryogenic fluid Unsuitable fluids: Not applicable to oxidizing acids such as hot concentrate
中文汉化	815653 膨胀石墨密封垫片 VALQUAFOIL VF-35E型 3.0×1000×1000毫米 -----描述-----：Valqua? No. VF-35E 是一种高性能垫片材料，采用纯石墨密封材料 VALQUAFOIL? 制成，具有优异的密封特性。其特点包括出色的耐热性，在高温下物理性能变化极小、低应力松弛以及良好的耐化学腐蚀性。适用温度范围为 -240°C 至 400°C（-400°F 至 752°F），最大使用压力为 5 MPa。适用于水、蒸汽、油类等一般流体，以及腐蚀性液体、液化气和低温流体的密封。但不适用于强氧化性酸类，如高温浓硫酸和浓硝酸。广泛应用于管道法兰、阀门阀盖、设备端盖及多种工业领域。其环形模制品符合 JPI（ASME/ANSI）标准，确保在各类工业设备中的兼容性与可靠性。
IMPA版本	8th Edition
