815625 SHEET NONASBESTOS FIBRE VALQUA, GENERAL 6509 1.5X2540X3810MM

规格参数	参数值
IMPA编码	815625
产品单位	ST

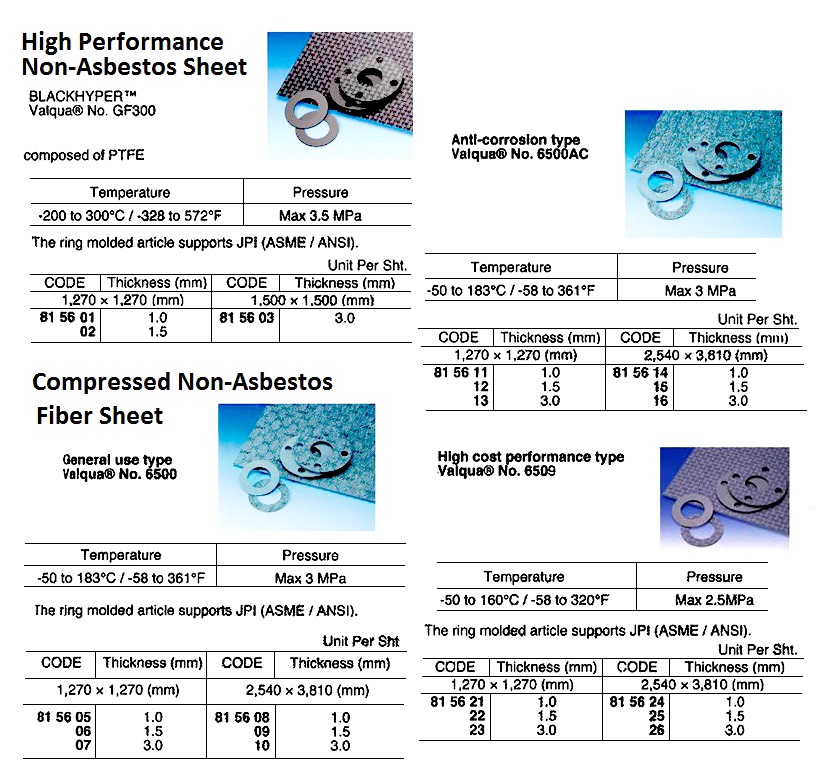

产品规格	Compressed Non-Asbestos Fiber Sheets are rolled and vulcanized sheet-type gasket materials, in which special rubber binders and a small amount of filler material are mixed with organic and inorganic fibers. High cost performance type - VALQUA?No. 6509. This gasket was developed for low-pressure application. Features: Superior cost performance, Easy to handle and good workability. Temperature: -50 to 160oC / -58 to 320oF, Pressure: Max 2.5MPa. Suitable fluids: General fluids (water, steam, oil, e
中文汉化	815625 无石棉纤维板 VALQUA通用型6509 1.5×2540×3810毫米 -----描述-----：压缩非石棉纤维垫片是一种通过滚压和硫化工艺制成的片状密封材料，由特殊橡胶粘合剂与少量填料混合有机和无机纤维构成。其中高性价比型号为VALQUA? No. 6509，专为低压应用设计。该垫片具有优越的成本效益，易于操作且加工性能良好。其适用温度范围为-50至160°C（-58至320°F），最大工作压力可达2.5MPa。适用于多种流体如水、蒸汽、油等以及液化气体。典型应用包括管道法兰、阀门盖以及其他设备的覆盖件。颜色类型为蓝色，印刷颜色为黑色，并且环形模制件符合JPI（ASME/ANSI）标准。这种垫片不仅提高了设备的密封性和安全性，同时也因其良好的经济性而受到广泛应用。
IMPA版本	Other Versions
