815603 SHEET NON-AS VALQUA HI-PERFORM, GF300 3.0X1,500X1,500MM

规格参数	参数值
IMPA编码	815603
产品单位	ST

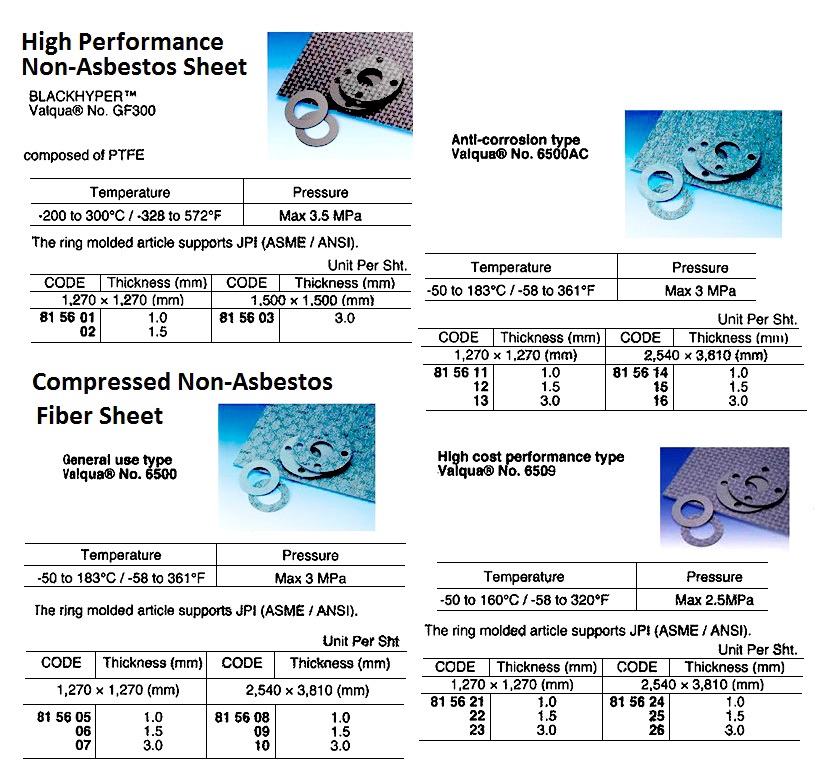

产品规格	BLACKHYPER? VALQUA?No. GF300. This gasket is mainly composed of PTFE as a binder and doesn’t contain any rubber. Features: Very minor change in physical properties even under high temperatures, Excellent chemical resistance. Excellent heat resistance, Easy to handle , Does not harden easily, No hardening makes retightening possible. Temperature: -200 to 300oC/-328 to 572oF, Pressure: Max 3.5 MPa, Suitable fluids: General fluids (water, steam, oil, etc.), solvents, liquefied gas, Applications: Pi
中文汉化	815603 无石棉高性能密封垫片 VALQUA GF300型 3.0×1500×1500毫米 -----描述-----：BLACKHYPER? Valqua? No. GF300 是一种以聚四氟乙烯（PTFE）为粘结剂、不含任何橡胶成分的垫片材料。其特点包括：在高温环境下物理性能变化极小，具有优异的耐化学腐蚀性和耐热性，易于操作，不易硬化，便于反复紧固。适用温度范围为 -200°C 至 300°C（-328°F 至 572°F），最大使用压力为 3.5 MPa。适用于水、蒸汽、油类等一般流体，以及溶剂和液化气等介质。广泛用于管道法兰、阀门阀盖、塔器、储罐、压力容器及热交换器等设备的密封。该产品为黑色外观，印刷也为黑色，环形模制品符合 JPI（ASME/ANSI）标准。
IMPA版本	8th Edition

以上内容为AI翻译，请正确甄别-The above content is translated by AI and the images are sourced from the internet. Please discern correctly.
