密封接合
| 规格参数 | 参数值 |
|---|---|
| IMPA编码 | 814021 |
| 产品单位 | PCS |

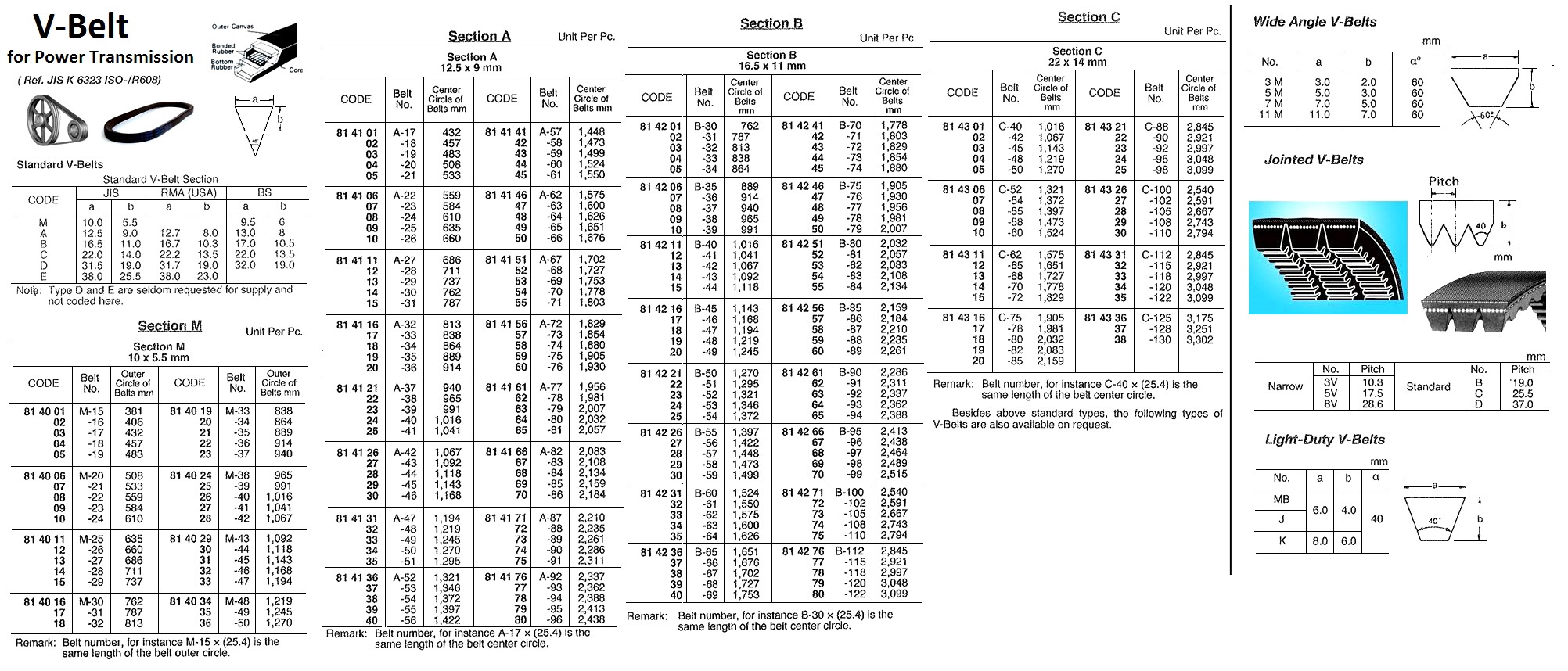

| 产品规格 | The outstanding properties of the single line cord V-belt are that it has great strength and flexibility while stretching only a minimum amount. Standard V-Belts - The standard sizes are classified into 6 types: M, A, B, C, D, E with the sizes as shown in the table below. The length M type is measured by an outside circle, while types A~E are measured by the inside circles of the belt |
| 中文汉化 | 814021 V型皮带（M表示公制V带（Metric）数字代表基准长度（英寸）×10，如M-20即基准长度20英寸换算成mm*25.4（508mm）截面尺寸：顶宽：12.7mm高度：10mm角度：40°±1°） M-35 -----描述-----：单线绳V型带以其卓越的强度和灵活性著称，同时仅有极小的拉伸量。标准V型带根据尺寸不同分为6种类型：M、A、B、C、D、E，具体尺寸见下表。M型的长度是通过外圆周测量的，而A至E型则是通过内圆周测量的。这种V型带非常适合需要高效动力传输且空间有限的应用场景，其特性确保了稳定可靠的动力传输性能，并由于最小化的拉伸特性减少了维护需求，延长了使用寿命。选择合适类型的V型带对于保证机械设备的最佳运行效率至关重要。 |
| IMPA版本 | 8th Edition |
以上内容为AI翻译，请正确甄别-The above content is translated by AI and the images are sourced from the internet. Please discern correctly.
