811374 PACKING PILLARFOIL BRAIDED, PILLAR NO.6315CH 24MMX3MTR

规格参数	参数值
IMPA编码	811374
产品单位	BX

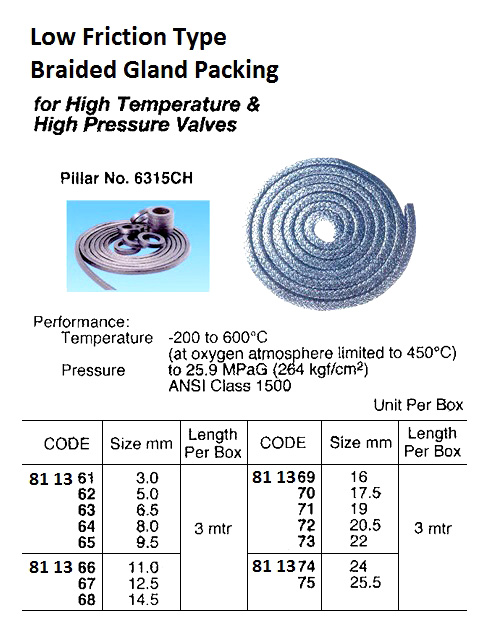

产品规格	Pillar No. 6315CH. Structure: A gland packing made of braided expanded graphite yarn reinforced with stainless wire. Features: Its surface is coated with lubricant and graphite powder to minimize the sliding resistance of the valve stem. Applications: Suitable for use with high-temperature and pressure valves. Performance: Temperature -200 to 600oC (at oxygen atmosphere limited to 450°C), Pressure to 25.9 MPaG (264 kgf/cm2), Class 1500
中文汉化	811374 编织金属箔密封填料型号6315CH 24毫米×3米 -----描述-----：Pillar No. 6315CH 是一种由不锈钢丝增强的编织膨胀石墨纱制成的密封填料，具有优异的耐高温和耐高压性能。其表面涂覆润滑剂和石墨粉，有效降低阀杆的滑动阻力，提升操作顺畅性与密封效果。该产品适用于高温高压阀门，性能卓越，适用温度范围为 -200°C 至 600°C（在含氧环境中最高使用温度为 450°C），最大工作压力可达 25.9 MPaG（264 kgf/cm2），符合 Class 1500 压力等级，是一款专为严苛工况设计的高性能密封解决方案。
IMPA版本	8th Edition

以上内容为AI翻译，请正确甄别-The above content is translated by AI and the images are sourced from the internet. Please discern correctly.
