密封接合
| 规格参数 | 参数值 |
|---|---|
| IMPA编码 | 811324 |
| 产品单位 | BX |

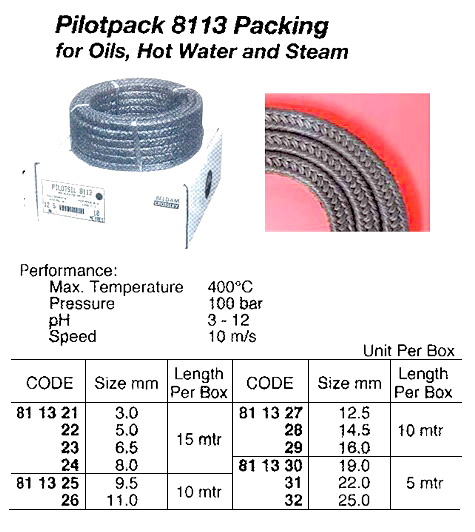

| 产品规格 | Greasy graphited, general purpose, non-asbestos, pump and valve packing. Each strand or high temperature BCX yarn is impregnated with a graphite lubricant to give good, firm, uniformly lubricated packing with a low coefficient of friction. Performance: Max. Temperature 400oC, Pressure 100 bar, pH 3-12, Speed 10 m/s, Applications: Rotary, reciprocating and static. Saturated steam, hot water, hot air and gases. Piston rods and valves rods. Ballast, bilge and cargo feed pumps. |
| 中文汉化 | 811324 水坝专用密封填料 PILOTPACK BELDAM CRSLY 型号8113 8毫米×15米 -----描述-----：这是一款通用型、无石棉的油脂石墨填料，专为泵和阀门密封设计。每根纤维均采用耐高温的 BCX 纱线，并浸渍石墨润滑剂，使填料结构坚实、润滑均匀，具有较低的摩擦系数，确保操作顺畅。其性能优越，最高耐温可达 400°C，最大工作压力为 100 bar，适用 pH 范围为 3～12，线速度最高达 10 m/s。适用于旋转、往复及静态密封应用，如饱和蒸汽、热水、热空气和气体工况，广泛用于活塞杆、阀杆密封，以及压载、舱底和货油输送泵等场合，是一款耐用且适应性强的高性能密封解决方案。 |
| IMPA版本 | 8th Edition |
