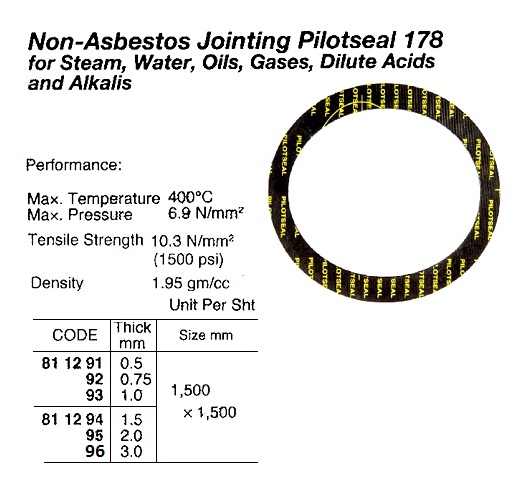

811291 SHEET PACKING NON-ASBESTOS, PILOTSEAL #178 0.5X1500X1500MM

规格参数	参数值
IMPA编码	811291
产品单位	ST
产品规格	General service non-asbestos jointing manufactured from heat resistant synthetic fibre and polymer. The printed green 25mm squares assist when cutting and making gaskets. Performance: Max. Temperature 400oC, Max. Pressure 6.9 N/mm2, Tensile Strength 10.3 N/mm2 (1500 psi, Density 1.95 gm/cc Applications: For sealing against steam, water, oils, gases, dilute acids and alkalis.
中文汉化	811291 无石棉密封垫片 PILOTSEAL 178型 0.5×1500×1500毫米 -----描述-----：这是一种通用型非石棉接合材料，由耐热合成纤维和聚合物制造而成，表面印有绿色25mm方格，便于切割和制作垫片。其最高使用温度为400°C，最大耐压为6.9 N/mm2，抗拉强度为10.3 N/mm2（1500 psi），密度为1.95 g/cm3。适用于蒸汽、水、油类、气体以及稀释酸碱等介质的密封应用，广泛用于多种工业领域中的法兰连接密封。
IMPA版本	8th Edition
