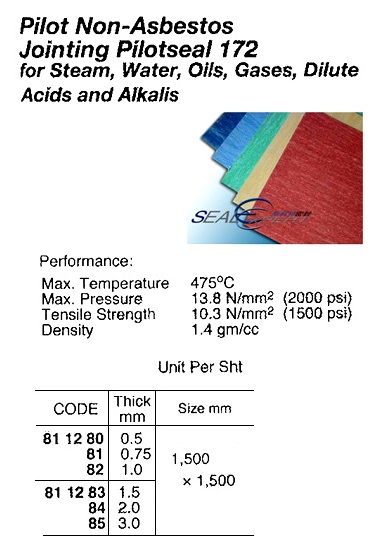

811282 SHEET PACKING NON-ASBESTOS, PILOTSEAL #172 1.0X1500X1500MM

规格参数	参数值
IMPA编码	811282
产品单位	ST
产品规格	High quality compressed jointing manufactured from heat resistant fibre and polymer. The anti-stick graphite silver finish facilities easy gasket removal and flange cleaning. Performance: Max. Temperature 475oC, Max. Pressure 13.8 N/mm2 (2000 psi), Tensile Strength 10.3 N/mm2 (1500 psi), Density 1.4 gm/cc Applications: For sealing against steam, water, oils, gases, dilute acids and alkalis.
中文汉化	811282 无石棉密封垫片 PILOTSEAL 172型 1.0×1500×1500毫米 -----描述-----：这是一种由耐热纤维和聚合物制成的高质量压缩接合材料，表面带有防粘连的石墨银色涂层，便于垫片拆卸和法兰清洁。其最高使用温度可达475°C，最大耐压为13.8 N/mm2（2000 psi），抗拉强度为10.3 N/mm2（1500 psi），密度为1.4 g/cm3，适用于蒸汽、水、油类、气体以及稀释酸碱等介质的密封，在多种工业场合中提供可靠的高性能密封解决方案。
IMPA版本	8th Edition
